2021 January Newsletter –
Variable Choices of RGB+IC Addressable LEDs
American Bright offers a new series of 5050 / 3528 / 4020 / 2020 RGB LED packages with built-in IC. These RGB with IC packages are designed with an integrated circuit that features self-detection signal, support for continuous oscillation, and pulse width modulation (PWM) output that could maintain static screen.
LED Features:
- Available in PLCC-6 5050, and PLCC-4 5050, 3528, 4020 (side-emitting), EMC 2020 , and SMT 1204 packages
- Serial Peripheral Interface (SPI) communication protocol
- 8-bit (256 level) color set
- 5-bit (32 level) brightness adjustment
- Low voltage 0.2W~1W power consumption
- Built in support for continuous oscillation
- Self-detection signal
- Refresh rate of 400 cycles
- Operating temperature -40° C to 85° C
Schematic Diagram:
*Note:
CKI and CKO are only available in BB-HBGR32L-3-TRB-8 and BB-2020BGR-TRB

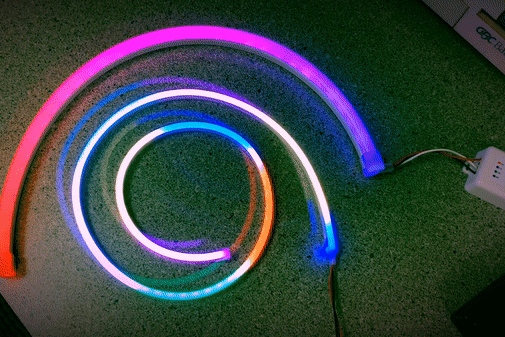

Assembled light strips/ rope lights:
- Top-view/ Side-emitting available
- Single/Sectional LEDs addressable in: 5VDC, 12VDC, 24VDC available
- IP20, IP65, and IP68 available
- Customized lengths and LED pitches
- Anti-UV transparent and diffused silicone materials available
- Drivers, mounting accessories, connectors can be provided
Application:
- Large LED display and backlighting
- Soft light bar and rope lighting
- Full color display
- Indoor and outdoor commercial and residential architectural lighting
- Decoration and entertainment lighting
- Gaming machines
- Beverage Dispensing Machines
